Basic Unix

  1. What is a directory?
  2. What is a terminal?
  3. Basic Unix commands

How files are stored in your computer? Introduction to directory!

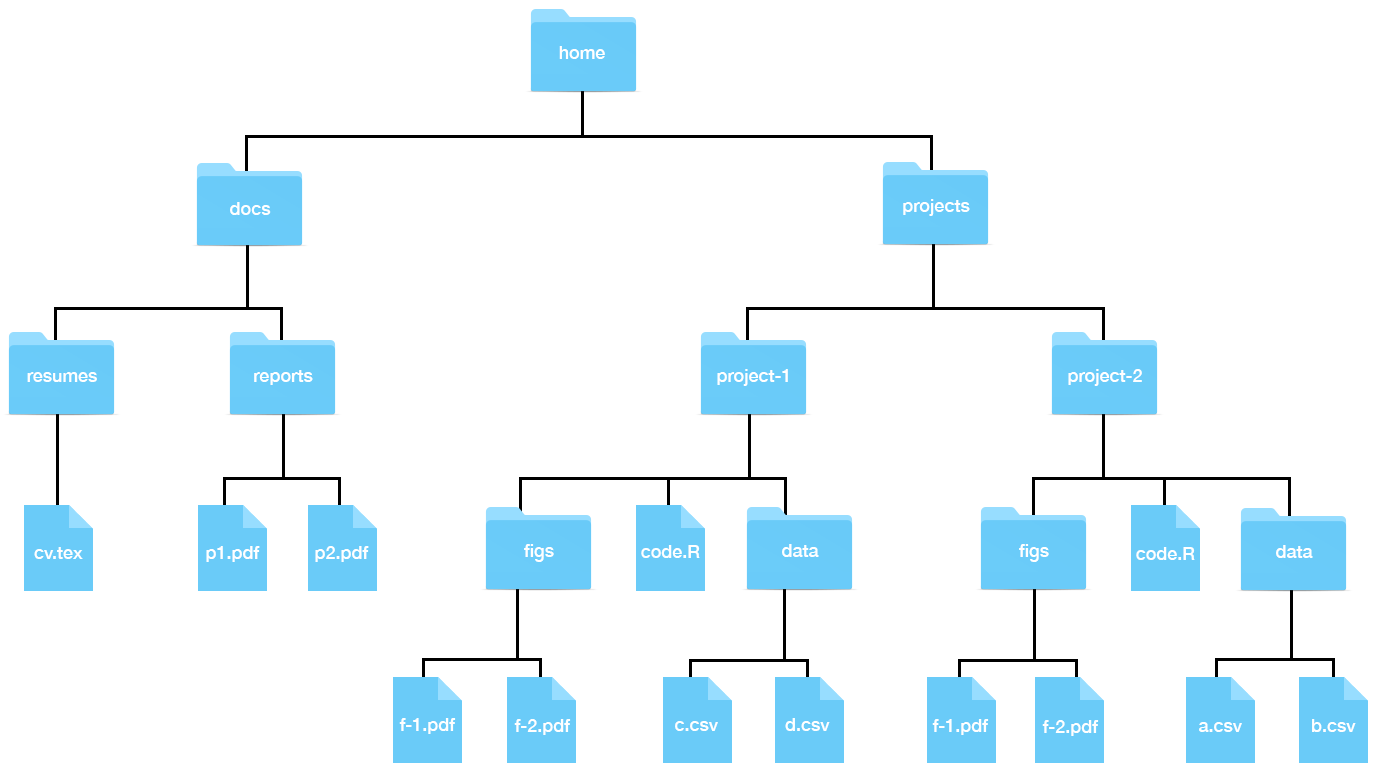

System Path Figure: File system hierarchy. Source: Introduction to Data Science

Questions:

How does the computer distinguish between f-1.pdf in project-1 vs f-1.pdf in project-2? Don't they have the same name? If we go to the project-1 folder and open the f-1.pdf file, are we asking the computer to open a file named f-1.pdf or are we asking more?

Even though they have the same name, the path from home to their "location" are different
The path to get from home to f-1.pdf in the folder project-1 is
home --> projects --> project-1-->figs--> f-1.pdf
Or we say, the path to f-1.pdf under project-1 is

/home/projects/project-1/figs/f-1.pdf
Meanwhile, the path to f-1.pdf under project-2 is
/home/projects/project-2/figs/f-1.pdf

So everytime you ask the computer to open/change/delete a file, you are not merely asking the computer to open/change/delete every file with the same name. In fact, you are asking the computer to open/change/delete the file at this specific path.

Therefore, every file path has to be unique! That's why you cannot have files with the same name in the same folder but you can have two files that share a name in different folders.
In fact, not just files, folders are also located by their paths.

To copy a file/folder path:
In Windows
Hold Shift and right-click the file or folder, then select "Copy as Path"
In MacOS
Hold option and right-click the file or folder, then select "Copy as Pathname"

Why do I need to know this?
Because if you are using R/Python to access to the content of a.csv, say in R:

data<-read.csv("a.csv")
R would not know how to find your a.csv. In order for this to work, you would have to provide the path to a.csv:
data<-read.csv("/home/projects/project-2/data/a.csv")

So if I want to load the code from code.R in project-2, access a.csv, b.csv the code would look like:

source("/home/projects/project-2/code.R")
data_a<-read.csv("/home/projects/project-2/data/a.csv")
data_b<-read.csv("/home/projects/project-2/data/b.csv")
Any problems?

To avoid typing the same path too many times, we have working directory. By setting working directory, we let the computer know that it we will always add the working directory path in front of the file name.

The two code chunks below are the same:

setwd("/home/projects/project-2/data")
data_a<-read.csv("a.csv")
data_b<-read.csv("b.csv")

data_a<-read.csv("/home/projects/project-2/data/a.csv")
data_b<-read.csv("/home/projects/project-2/data/b.csv")

The syntax to set up working directory is different based on the program language
For R

setwd("/home/projects/project-2/data")
For Python
import os
os.chdir("/home/projects/project-2/data")

Wait! What about code.R? Do you still have to do this?

setwd("/home/projects/project-2/data")
data_a<-read.csv("a.csv")
data_b<-read.csv("b.csv")
source("/home/projects/project-2/code.R")
Well no! if you set a working directory, it can be accessed via ., and its parent (a path before the working directory) can be accessed via ...

Meaning you can access code.R via :

setwd("/home/projects/project-2/data")
data_a<-read.csv("a.csv")
data_b<-read.csv("b.csv")
source("../code.R")
# working directory is /home/projects/project-2/data
# and .. means /home/projects/project-2
Or
setwd("/home/projects/project-2")
data_a<-read.csv("./data/a.csv")
data_b<-read.csv("./data/b.csv")
source("./code.R")
# working directory is /home/projects/project-2













What is a terminal

A text-based interface that allows you to interact directly with your computer

RStudio

Tools >> Terminal >> New Terminal

Visual Code Studio

Terminal >> New Terminal

Test if terminal is running okie?

pwd
This return your current working directory
If you are using terminal in RStudio and it return the error pwd is not recognized as an internal or external command
Please
1. Open Tools>> Global Options>>Terminal. Then choose Git Bash for New terminals open with>> Apply
2. Tools >> Terminal >> New Terminal

But why are we learning about terminal? What are Unix Commands?

  1. Git is way more efficient if you know some basic Unix commands
  2. Unix allow for quick and efficient file management
  3. Many research projects require you to do your computation on remote servers and high-performance computing clusters. Unix commands help you to communicate with these remote clusters
  4. If you are an expert, which I am not, mastering Unix will save you a lot of time since you are communicating directly with your computer

Basic Unix commands

pwd

pwd
Print your working directory

echo

echo "Hello NYU"
echo is command that prints the argument you provide

~

echo ~
~ is short for your home directory (NOT WORKING DIRECTORY). This is your default working directory.

ls

ls
ls is short for list. This displays the (non-hidden) contents of your current working directory

cd: Change your working directory

cd <working directory>
Example:
cd ~/Desktop
This change your working directory to the Desktop folder.
Depend on the structure of your computer, the Desktop folder may not be in your home directory. Use ls to see what folder is in your current working directory

mkdir: Make a new directory
rmdir: Remove an empty directory
rm -r: Remove a non-empty directory DANGEROUS!! There's no undo in the terminal!

mkdir <new working directory>
Example:
mkdir ./NYU1111
mkdir ~/Desktop/NYU1618
The first creates a new folder called NYU1111 in the current working directory.
The second command creates a new folder called NYU1618 in the Desktop folder.
We can remove these newly created empty folder
rmdir ./NYU1111
rmdir ~/Desktop/NYU1618

Use Tab for autocompletion

Interested in more advance Unix?
